Description

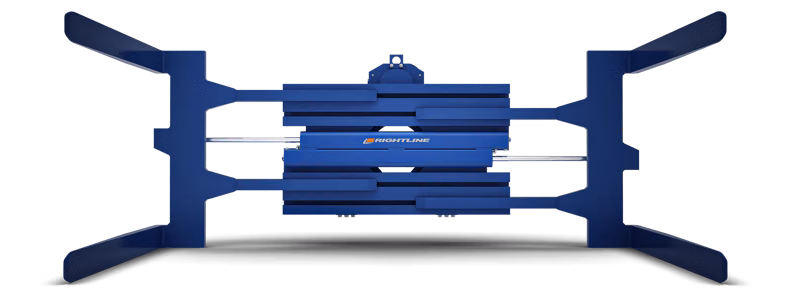

Rightline load inverters provide 360° continuous rotation and clamping capability for a variety of inversion and specialized handling applications. Arms revolve either direction for vertical orientation to enter pallet openings. An empty can be spun to the high position and carried while the lower set of forks is placed under a loaded pallet. Clamp actuation presses the upper pallet against the load top to hold during rotation and a 180° motion will invert the product as necessary for storage or transfer to the alternate pallet.
Specifications
Manufacturer
Rightline
Model
RLM-1A
Year
2026
Category
Forklift Attachments
Subcategory
Load Inverter
Class
II
Capacity @ 24
3500
Opening Range (O)
35-88
Hook Spread (A)
25.30
Fork Spacing (C)
28.00
Weight
1450
Lost Load
10.44
HCG
9.91
VCG
11.8
Frame Width (B)
41
Fork Size (T x W x L)
1.5 X 4 X 48
