Description

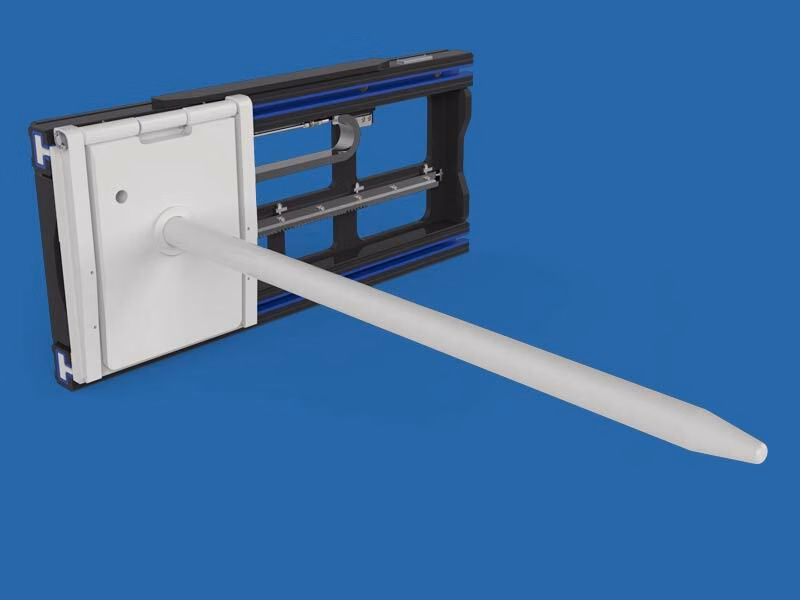

The High-Capacity Carring Ram is an ultra-high capacity paper roll carrying ram for operations that handle large and heavy reels and rolls of hard paper. Ideally suited for use when paper reels and rolls will not fit into a shipping container in the vertical and/or traditional bilge configurations. In these cases, lengthwise horizontal loading of the reels and rolls, or end loading, is the only option to maximize the diagonal space of the container.
Specifications
Manufacturer
Cascade
Model
30C-CRO-3A-3000
Year
2023
Category
Forklift Attachments
Subcategory
Paper Roll Clamp
Capacity (kg)
3000
Load Center (mm)
1400
Mounting Class ISO 2328
3A
Mass (kg)
365
Ram Arm Diameter (mm)
92
Core Diameter (mm)
100-103
Core Nominal Diameter (inches)
4
Ram Arm Length (mm)
2000
Frame Width (mm)
620
Minimum Roll Diameter (mm)
800
Effective Thickness (mm)
200
HCG(mm)
360
VCG (mm)
260
