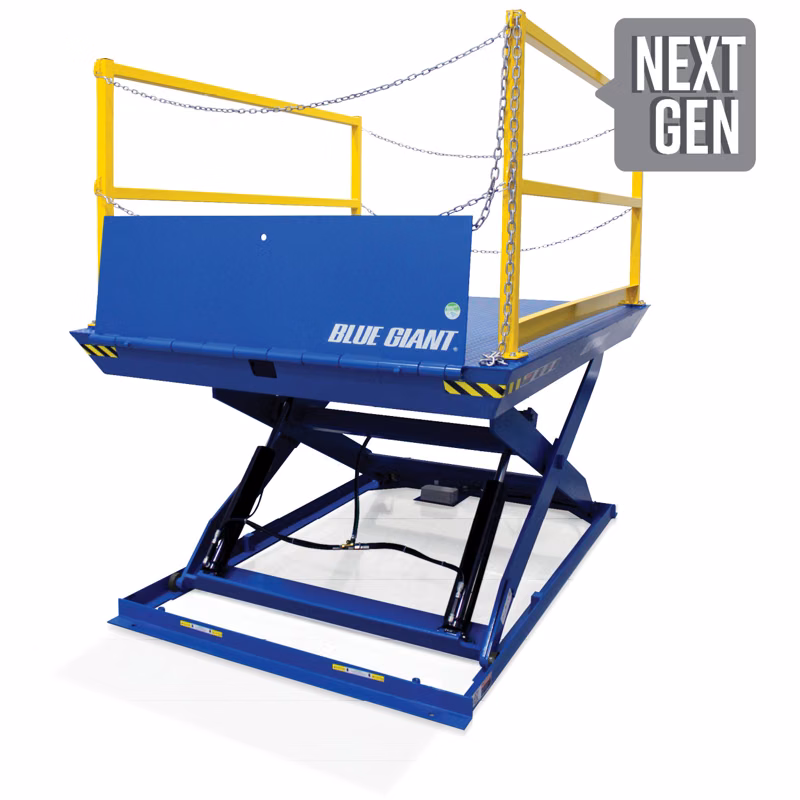

2023 Blue Giant Next Gen Dock Lift-96"
Forklifts / Lift TrucksDock Lifts - Lomaster™
Description
Typically, a dock lift will cost 1/3 the price of a fork lift truck and will have a quick and favorable payback when compared to the long-term cost associated with operating a forklift and manually loading / off-loading a trailer. The LoMaster™ Stationary Dock Lift will also greatly reduce handling costs, cargo damage and employee injury common to vertical transfer operations.
Specifications
Manufacturer
Blue Giant
Model
Next Gen Dock Lift-96"
Year
2023
Category
Forklifts / Lift Trucks
Subcategory
Dock Lifts - Lomaster™
Std. Powerpack
3 HP
Remote powerpacks
3-10 HP
Deck Length
96"
Lowered Height
10"
Lowered Height one
12"
Lowered Height Two
14"
Lowered Height Three
14"
Lowered Height Four
21"
Vertical Travel
59"
Vertical Travel one
59"
Vertical Travel Two
59"
Vertical Travel Three
57"
Vertical Travel Four
57"
Raised Height
69"
Raised Height one
71"
Raised Height Two
73"
Raised Height Three
71"
Raised Height Four
78"
Lift Time† (Sec)
26
Lift Time† (Sec) one
57
Lift Time† (Sec) Two
57
Lift Time† (Sec) Three
57
Lift Time† (Sec) Four
57
Length
15" (385 mm)
Width
15" (385 mm)
Height
26" (660 mm)
Deck widths
60" to 96" (1524 to 2438mm)
Deck lengths
96" to 144" (2438 to 3658mm)
Rated Capacity lb
5,000 & 6,000
Rated Capacity lb one
8,000
Rated Capacity lb Two
10,000
Rated Capacity lb Three
12,000 & 15,000
Rated Capacity lb Four
20,000
Lift Time Conversion†
multiply lift time by 2
Shipping Weight
55 lb (25 kg)
Rated capacities
5,000 to 20,000 lb (2,267 to 9,072 kg)
Remote power pack
12' (3,658 mm) hydraulic hose
Push button control on
12' (3,658 mm) straight cord
Gpm
1.9
